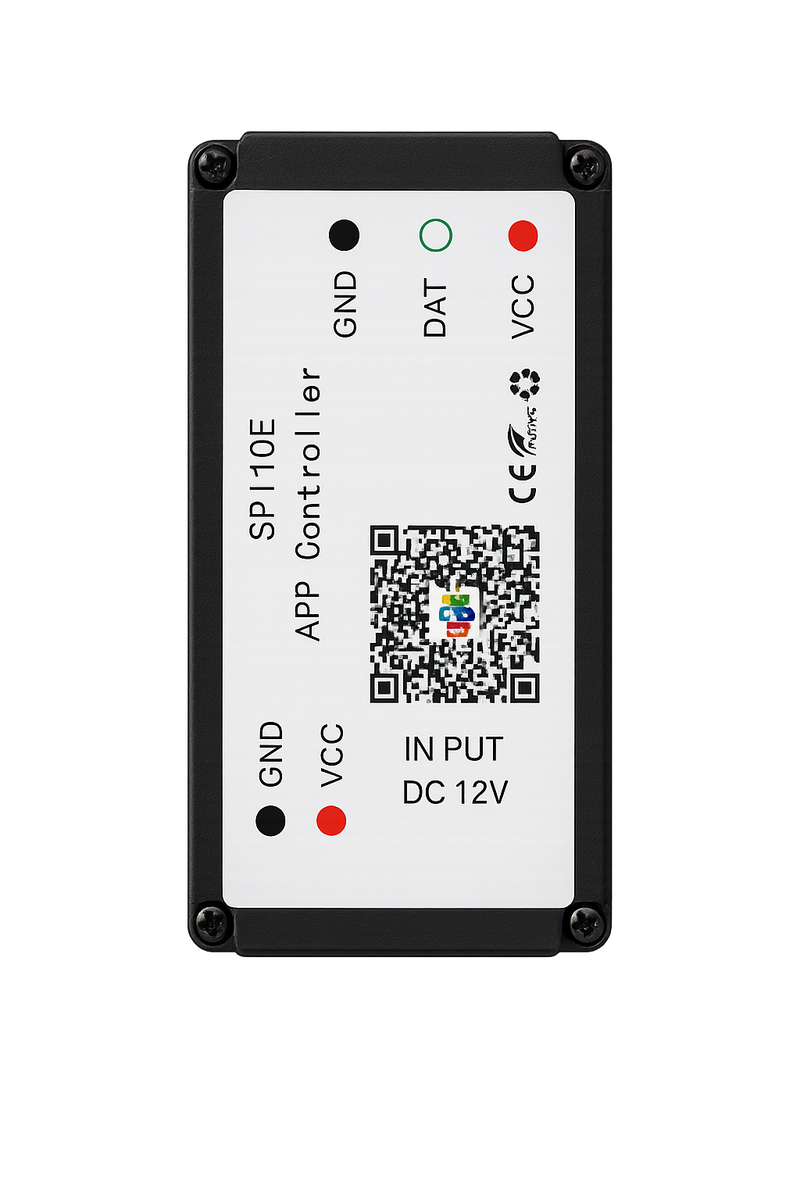

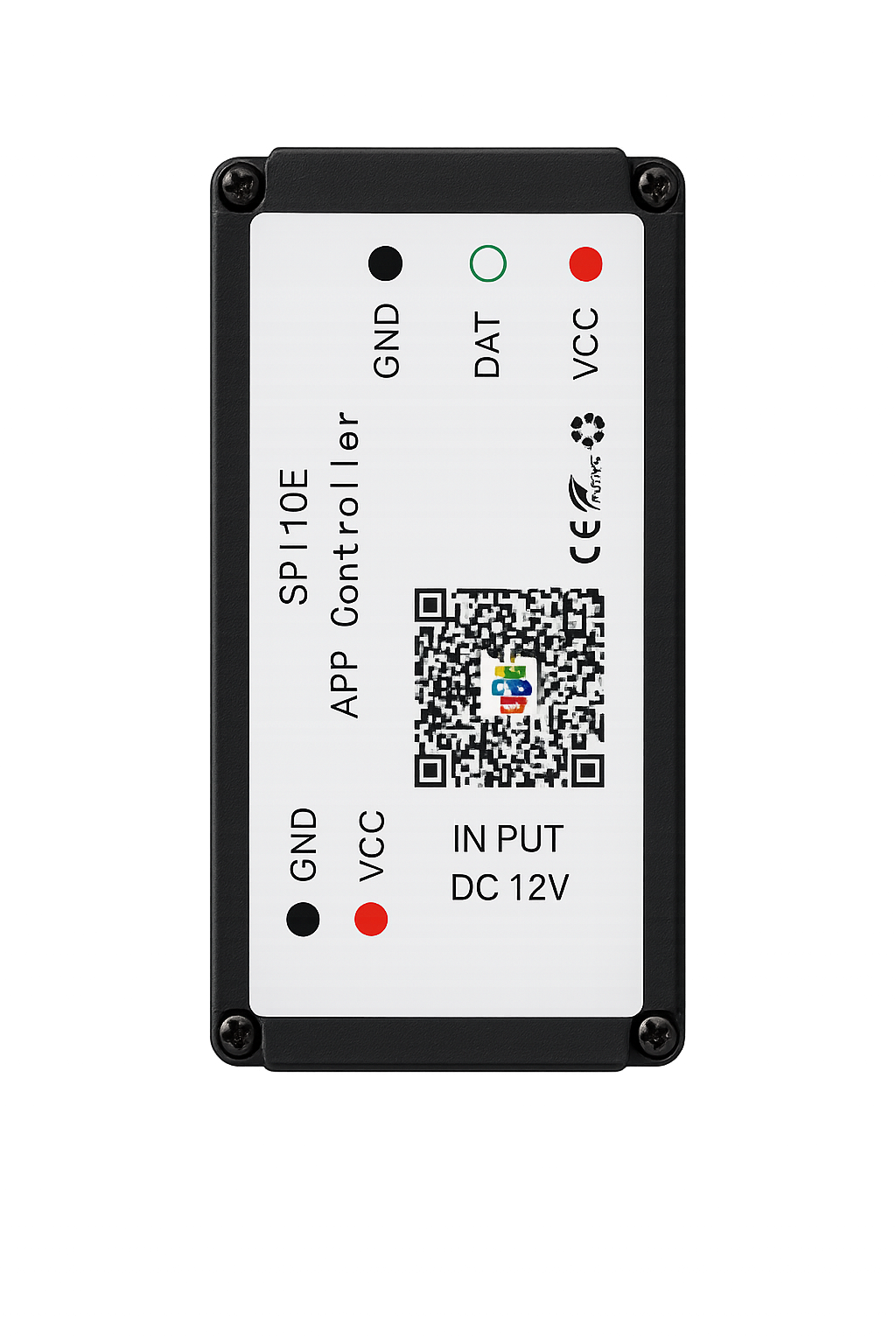

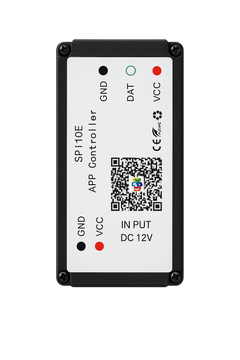

Black rectangular controller with a white label reading SP110E APP Controller and INPUT DC 12V, a QR code, and GND, DAT and VCC markings on a grey background.

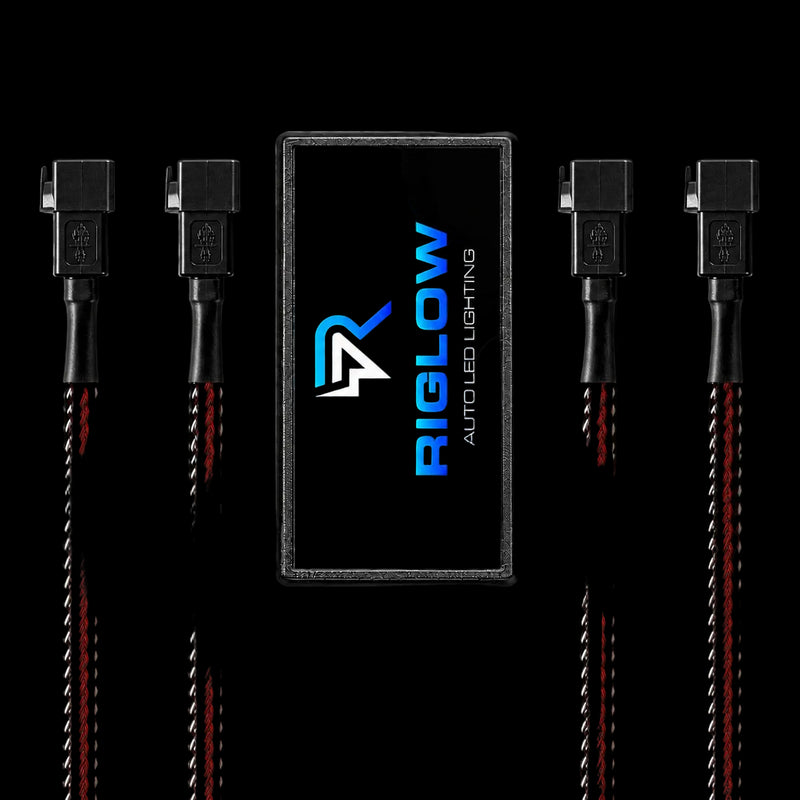

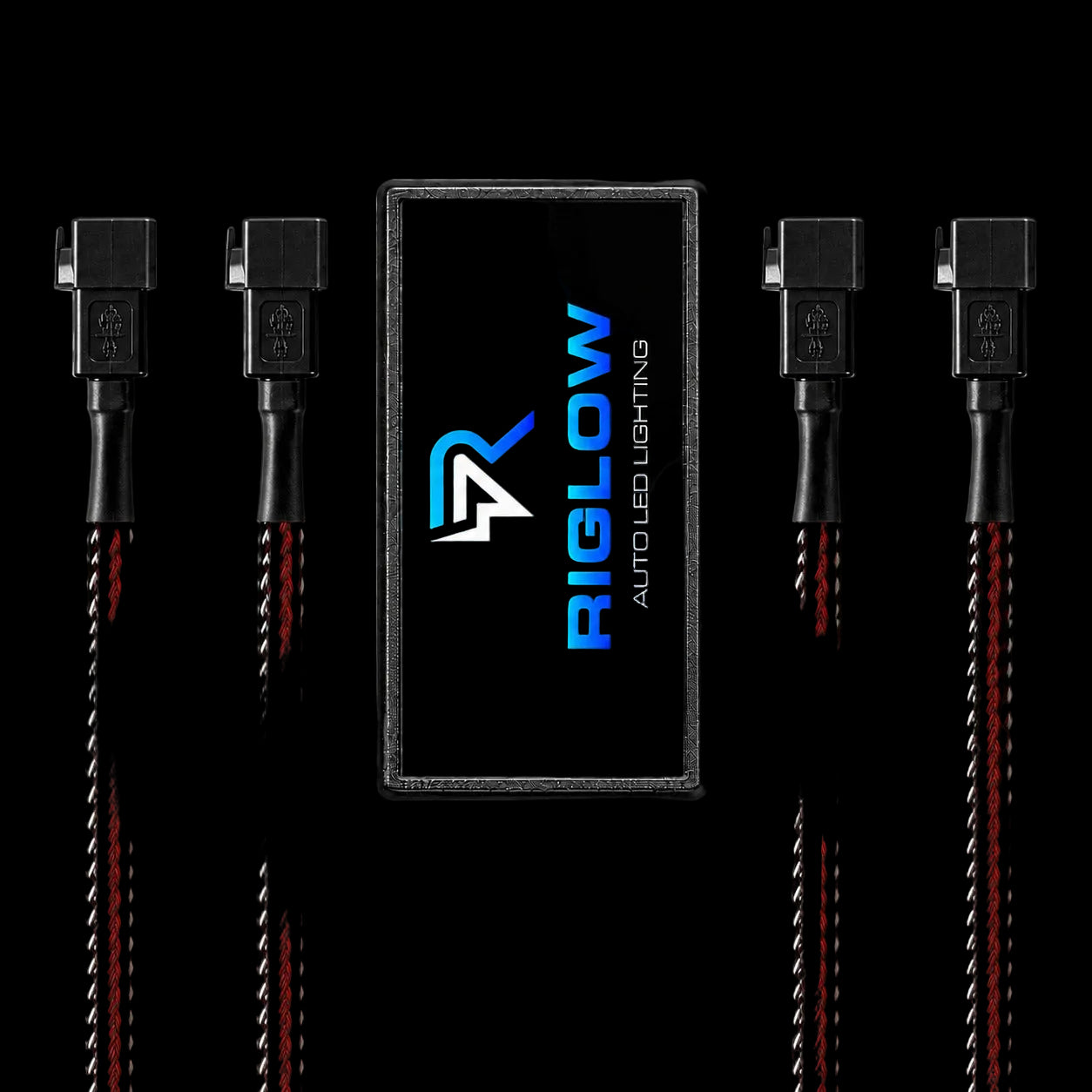

Black Riglow-branded controller pictured between four black connectors with braided red, black and white leads against a black background.

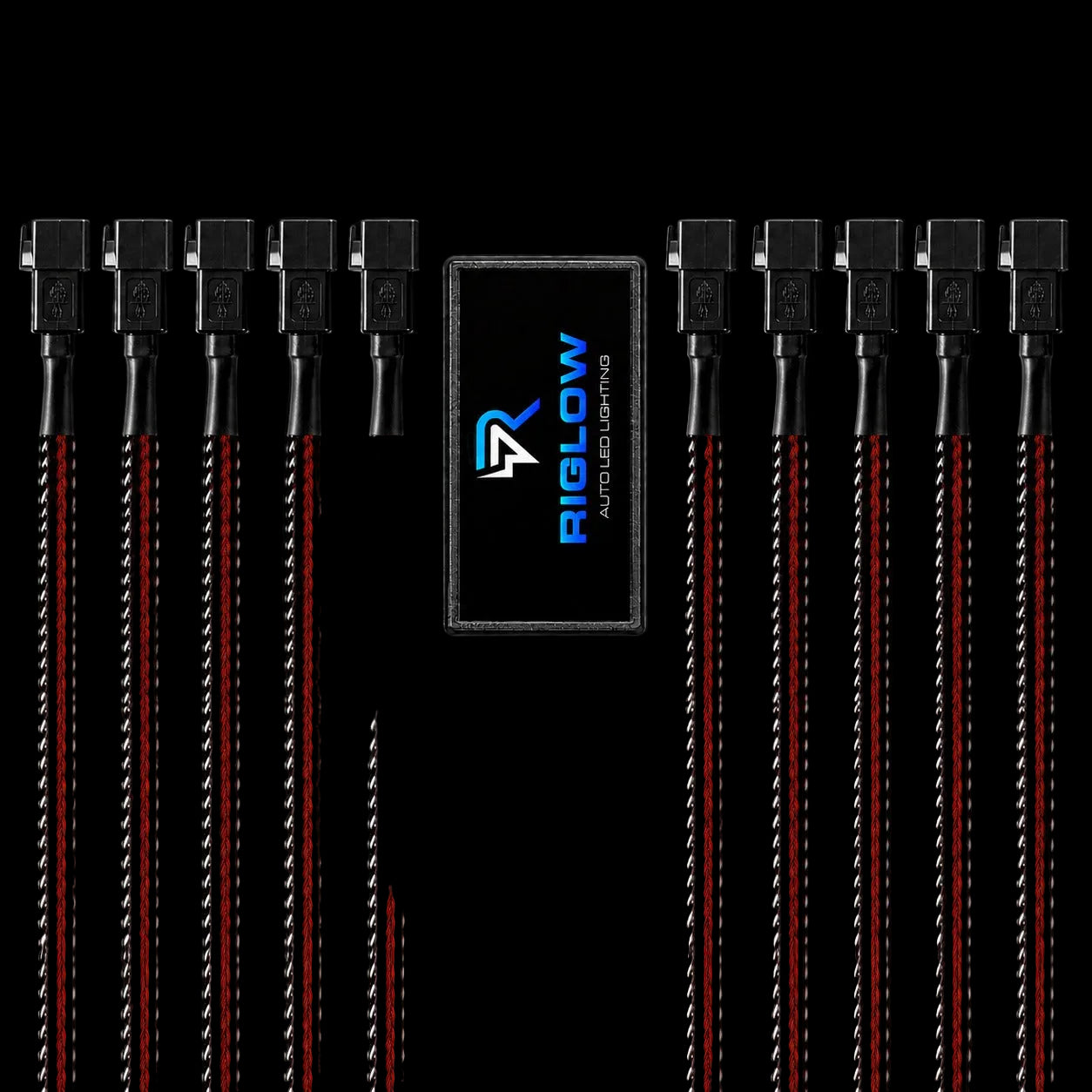

Black Riglow-branded controller centred between two groups of five black connectors with braided wire leads against a black background.

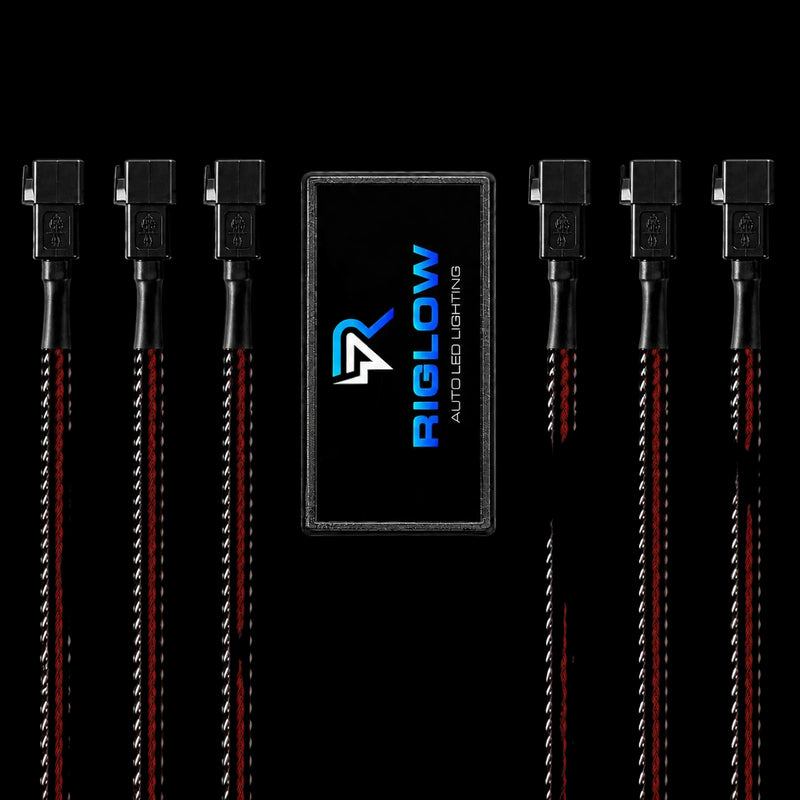

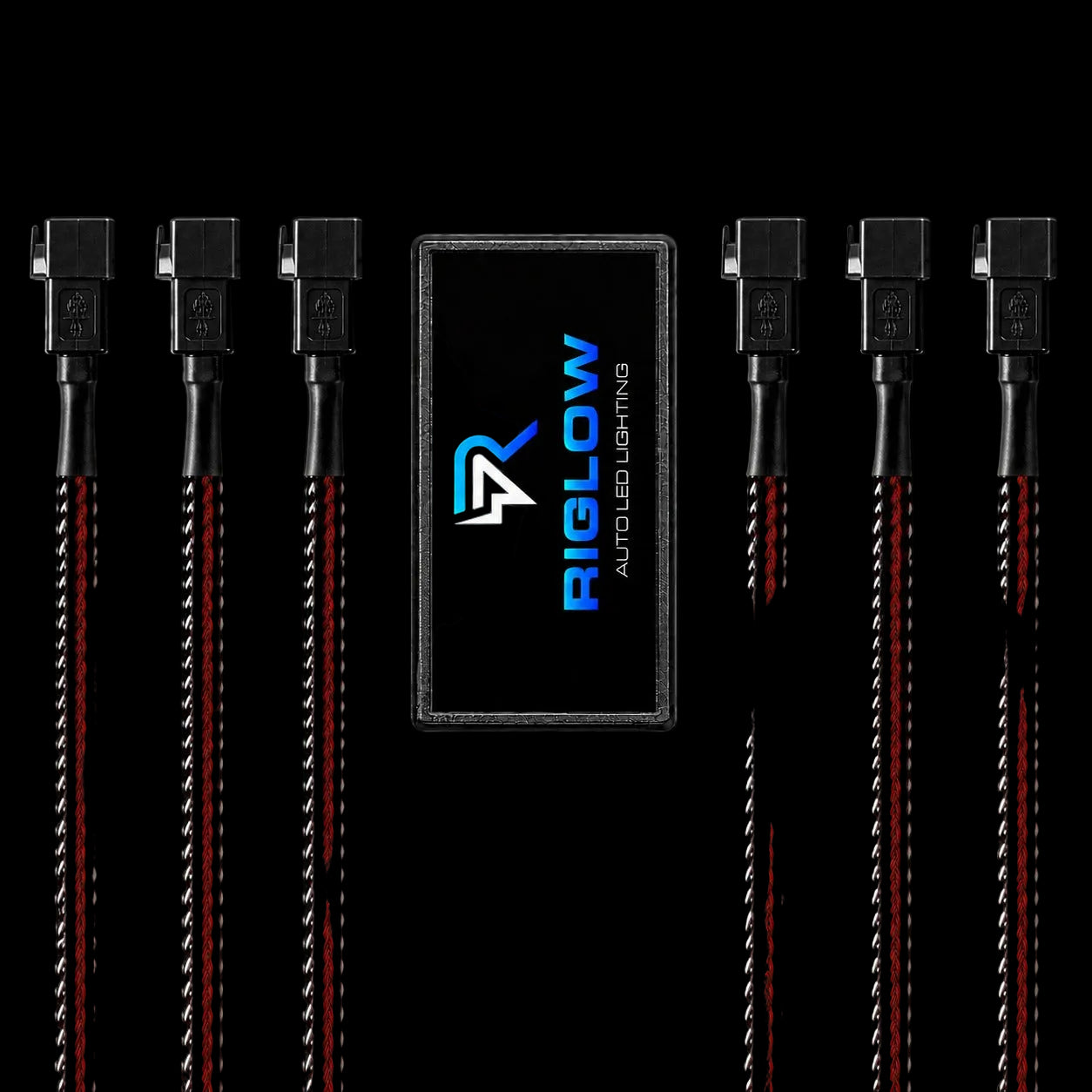

Black Riglow-branded controller centred between two groups of three black connectors with braided wire leads against a black background.
    Black Riglow-branded controller with two black connectors and braided wire leads pictured beside it against a black background.
    Black rectangular controller with a white label reading SP110E APP Controller and INPUT DC 12V, a QR code, and GND, DAT and VCC markings on a grey background.
    Black Riglow-branded controller pictured between four black connectors with braided red, black and white leads against a black background.
    Black Riglow-branded controller centred between two groups of five black connectors with braided wire leads against a black background.
    Black Riglow-branded controller centred between two groups of three black connectors with braided wire leads against a black background.
Black Riglow-branded controller with two black connectors and braided wire leads pictured beside it against a black background.
Black rectangular controller with a white label reading SP110E APP Controller and INPUT DC 12V, a QR code, and GND, DAT and VCC markings on a grey background.
Black Riglow-branded controller pictured between four black connectors with braided red, black and white leads against a black background.
Black Riglow-branded controller centred between two groups of five black connectors with braided wire leads against a black background.
Black Riglow-branded controller centred between two groups of three black connectors with braided wire leads against a black background.

RGB LED Controller

Riglow™ SP110E Bluetooth SPI LED Controller – 2CH, 4CH, 6CH or 8CH

$130.00 BBD
$130.00 BBD
SP110EListed model
ABS HousingListed material

Check the selected option and compatibility before ordering. Open bulb guides ↗

Controller Type
Channel

RIG-SP110E-RGB-2CH

Availability applies to the selected option.

Delivery — BarbadosPay in full via 1stPay, BIMPay or bank transfer and send payment confirmation before courier release. Choose delivery at checkout.

Store pickupPickup orders may be paid when collected. Wait for confirmation that your order is ready.

Need help choosing? Contact Riglow ↗

BEFORE YOU ORDER

The right upgrade starts with the right fit.

Confirm the bulb socket, dimensions, connections and application relevant to this product. If unsure, send us a photo before ordering.

Listed specifications

Brand
Riglow™
Model
SP110E
Product Type
Bluetooth SPI addressable LED controller
Material
ABS Housing
Installation
Follow exact-version supplier wiring; match supply to LED voltage within DC 5–24V. VCC is not voltage-regulated. Verify pinout, load limits and protection.
Fitment
For compatible addressable IC LEDs, including the listed supported RGB/RGBW chipsets; not conventional RGB/RGBW strips without driver ICs. Verify connectors, pinout and voltage. No direct-fit vehicle application established.
Notes
Voltage-label discrepancy: the main product image shows a controller label marked INPUT DC 12V, while the merchant-confirmed reference specifies DC 5V–24V. The image does not establish which version is supplied for each variant. Confirm the exact supplied controller version and permitted input with the supplier before connecting power; do not assume the wider range applies to a unit labelled DC 12V. VCC is not voltage-regulated; the supply must also match the connected LEDs. Merchant confirmed October 15, 2026 that the supplied SP110E information applies to the stocked controller and that the 2CH, 4CH, 6CH and 8CH configurations are retained. Six existing variants are preserved; configuration labels alone do not establish independent output control or confirm vehicle functions. Control capacity: configurable pixel count, up to 1024 pixels in total, not an established per-channel allowance. Settings retained when powered off. Reverse-connection protection is listed; follow correct polarity and supplier procedures. Effects: 120 built-in effects, colour and speed adjustment, brightness 1%–100%. Selectable colour orders RGB/RBG/BRG/BGR/GRB/GBR. Listed compatible chipsets: WS2811, WS2812B, WS2813, SK6812 RGB, SK6812 RGBW, SK6812, SK9822, APA102 and LPD8806. Conventional RGB/RGBW strips without driver ICs are not supported. Select WS2811 for WS2812B/WS2813; SK6812 for SK6812 RGB. Separate white adjustment is supported with compatible SK6812 RGBW strips. Verify exact chipset and pinout; do not infer compatibility with every IC. App: LED Hue via Bluetooth. Supplied requirements list Android 4.4 or iOS 10.0 and Bluetooth 4.0 or later; verify current app availability/device compatibility via the product QR code or device app store. Stated unobstructed range up to 20m; actual range varies. Power: DC 5V–24V input, with no voltage regulation at VCC. A 5V LED strip requires a 5V supply; never connect it to 12V or 24V. Match the supply to controller and connected LEDs. Pixel capacity is not an LED load-current rating; exact total/per-output load limits, circuit protection and power distribution require supplier confirmation. Wi-Fi, battery operation, touch controls, three-button layout and four-device capacity are not established by the detailed supplied specifications. Four-controller/four-DC-connector package text describes the reference bundle, not verified contents of this listing. Confirm sale quantity and accessories for the selected configuration. Music/voice sync, vehicle DRL/turn-signal/switchback functions, startup-animation availability by variant, waterproof/IP rating and environmental suitability remain unverified. Existing functional variant labels are retained as identifiers, not independent verification of these functions. Consult the linked Riglow 1-Year Standard Warranty for coverage.
Will it fit my vehicle?

Confirm the bulb socket, dimensions, connections and application relevant to this product. If unsure, send us a photo before ordering.

Open bulb guides ↗
Installation & warranty guidance

We do not install on site. A referral to an external technician is available when needed.

View warranty terms ↗
Full product details & package contents

Personalise your lighting with LED Hue

Choose the Riglow™ SP110E Bluetooth SPI LED controller in 2CH, 4CH, 6CH or 8CH configurations. Set pixel count, choose from 120 built-in effects, and adjust colour, speed and brightness from 1% to 100%. The supplied specifications list up to 1024 pixels in total, settings retained when power is off, and reverse-connection protection. Always follow correct polarity and supplier wiring instructions.

Addressable RGB and RGBW lights

Supported chipsets listed in the supplied specifications include WS2811, WS2812B, WS2813, SK6812 RGB, SK6812 RGBW, SK6812, SK9822, APA102 and LPD8806. Conventional RGB or RGBW strips without driver ICs are not supported. Verify the exact chipset, connectors and pinout.

Choose RGB, RBG, BRG, BGR, GRB or GBR colour order. Select WS2811 in the app for WS2812B or WS2813 lights, and SK6812 for SK6812 RGB. Compatible SK6812 RGBW strips allow separate white-channel adjustment.

Bluetooth app control

Use LED Hue, identified through the product QR code or your device's app store. Supplied requirements list Android 4.4 or iOS 10.0 and Bluetooth 4.0 or later; check current app availability and device compatibility. Stated range is up to 20 metres without obstructions; actual range varies. Wi-Fi and battery operation are not established.

Match the voltage to your lights

The controller accepts DC 5V–24V but does not regulate the voltage at VCC. Use a 5V supply for 5V lights, never 12V or 24V. Match the supply to both the lights and controller requirements. Pixel count is not a load-current rating; obtain output limits, circuit-protection and power-distribution instructions from the supplier.

Configuration and installation

The available configurations are 2CH, 4CH, 6CH and 8CH. Confirm their exact channel arrangement and wiring before installation; these labels alone do not establish independent output control. The supplied 1024-pixel total is not a confirmed per-channel allowance.

Follow exact-version supplier wiring instructions. Music or voice sync, vehicle DRL/switchback functions, waterproof ratings and direct-fit vehicle compatibility are not established by these specifications. See the linked warranty for coverage.

The supplied reference describes a four-controller bundle, not confirmed contents for this listing. Confirm the selected configuration's sale quantity and included connectors or harness before ordering.

Guides and FAQs

SP110E Controller – Setup and Compatibility Checks

Step-by-step instructions

1. Identify the SP110E controller and selected 2CH, 4CH, 6CH or 8CH configuration. Obtain the exact-version supplier wiring diagram. Channel labels do not establish independent output control or separate app zones.
2. Check the lights' driver IC, connectors, polarity and pinout. Listed supported chipsets include WS2811, WS2812B, WS2813, SK6812 RGB, SK6812 RGBW, SK6812, SK9822, APA102 and LPD8806. Conventional RGB/RGBW strips without driver ICs are not supported.
3. Match the supply to the lights and controller. Controller input is DC 5V–24V, but VCC does not regulate voltage. Use a 5V supply for 5V LEDs, never 12V or 24V. Follow supplier power-distribution and circuit-protection instructions.
4. Confirm total/per-output load limits with the supplier before connecting. Up to 1024 pixels is the stated total control capacity, not a current rating or a per-channel allowance. Do not multiply it by channel count.
5. Install LED Hue using the product QR code or your device app store. Supplied requirements list Android 4.4 or iOS 10.0 and Bluetooth 4.0 or later; check current availability and device compatibility. Follow the app/supplier connection instructions.
6. Set the pixel count, chipset and colour order to match the lights. Select WS2811 for WS2812B/WS2813 and SK6812 for SK6812 RGB. Colour orders are RGB, RBG, BRG, BGR, GRB and GBR. Compatible SK6812 RGBW lights allow separate white adjustment.
7. Use the app to select from 120 effects and adjust colour, speed and brightness from 1% to 100%. Settings are retained when powered off. Test only according to the supplier's commissioning procedure after all electrical checks. Stated unobstructed Bluetooth range is up to 20m; actual range varies.

Notes

Voltage-label discrepancy: the main product image shows a controller label marked INPUT DC 12V, while the merchant-confirmed reference specifies DC 5V–24V. The image does not establish which version is supplied for each variant. Confirm the exact supplied controller version and permitted input with the supplier before connecting power; do not assume the wider range applies to a unit labelled DC 12V. VCC is not voltage-regulated; the supply must also match the connected LEDs.

Based on merchant-confirmed SP110E information supplied October 15, 2026. Setup checklist only, not a complete wiring diagram or verified vehicle-installation procedure. No guessed wire colours, fuse values, trigger connections, mounting or waterproof/IP claims. Reverse-connection protection is listed but does not replace correct wiring. Vehicle DRL/turn-signal/switchback/startup-animation functionality by variant remains unverified. Wi-Fi, battery operation, independent output behaviour and bundle contents are not inferred. No factory-reset procedure has been supplied for SP110E; do not use the SP668E power-cycle procedure. Difficulty, installation duration, tools, PDF and video are left blank pending documentation.
Which LED lights are compatible with the SP110E controller?
The supplied SP110E specifications list support for addressable IC lights using WS2811, WS2812B, WS2813, SK6812 RGB, SK6812 RGBW, SK6812, SK9822, APA102 and LPD8806. Conventional RGB or RGBW strips without driver ICs are not supported. Do not assume compatibility with every Riglow lighting product; verify its exact chipset, connector pinout, voltage and load requirements.
The merchant-confirmed reference specifies DC 5V–24V, but the linked specifications document a product-image label marked INPUT DC 12V. The supplied version is not established by that image. Confirm the exact controller version and permitted input with the supplier before connecting power; do not assume the wider range applies to a unit labelled DC 12V. VCC is not voltage-regulated, so the supply must match both the confirmed controller requirements and the connected LEDs. A 5V LED load requires a suitable 5V supply; never apply 12V or 24V to 5V lights.
Confirm total/per-output current limits and power distribution with the supplier. The stated control capacity is up to 1024 pixels in total, not an established per-channel allowance or load-current rating.
Use LED Hue via Bluetooth. Select WS2811 for WS2812B/WS2813 lights, or SK6812 for SK6812 RGB. Compatible SK6812 RGBW strips allow separate white-channel adjustment. Select the colour order matching your lights from RGB, RBG, BRG, BGR, GRB or GBR.
Vehicle DRL, turn-signal, switchback and startup-animation behaviour by configuration, waterproofing and direct-fit vehicle compatibility still require exact-version confirmation.
How do I choose the SP110E channel configuration for my build?
The SP110E listing offers 2CH, 4CH, 6CH and 8CH configurations across six retained variants. Choose using the exact selected configuration’s supplier wiring diagram, connector arrangement, compatible LED chipset, supply voltage and total/per-output load limits, rather than the number of lighting zones alone.
Channel labels do not by themselves establish independently controlled outputs, separate app zones or greater usable load capacity. The supplied control capacity is up to 1024 pixels in total, not a confirmed per-channel allowance; do not multiply it by the channel count.
The existing RGB, RGB + DRL + Turn Signal, and RGB + DRL + Turn Signal + Animation labels identify the retained variants. Vehicle DRL, turn-signal, switchback and startup-animation behaviour by configuration still require exact-version confirmation. Do not treat those labels as a verified vehicle wiring guide.
Before ordering, confirm which configuration suits your lights and installation with Riglow or the supplier. The merchant-confirmed reference specifies DC 5V–24V, but the linked specifications document a product-image label marked INPUT DC 12V. The supplied version is not established by that image. Confirm the exact controller version and permitted input with the supplier before connecting power; do not assume the wider range applies to a unit labelled DC 12V. VCC is not voltage-regulated, so the supply must match both the confirmed controller requirements and the connected LEDs. A 5V LED load requires a suitable 5V supply; never apply 12V or 24V to 5V lights.
How do I install and configure the SP110E controller?
Follow the exact-version supplier wiring instructions and verify the LED chipset, connector pinout, polarity, load limits and circuit protection before connecting power. Do not infer wire functions from colour or assume installation is plug-and-play.
The merchant-confirmed reference specifies DC 5V–24V, but the linked specifications document a product-image label marked INPUT DC 12V. The supplied version is not established by that image. Confirm the exact controller version and permitted input with the supplier before connecting power; do not assume the wider range applies to a unit labelled DC 12V. VCC is not voltage-regulated, so the supply must match both the confirmed controller requirements and the connected LEDs. A 5V LED load requires a suitable 5V supply; never apply 12V or 24V to 5V lights.
The 1024-pixel total is not a load-current rating or a per-channel allowance. Obtain supplier guidance on power distribution and output limits.
Use the LED Hue Bluetooth app, identified through the product QR code or your device app store. Supplied minimum requirements list Android 4.4 or iOS 10.0 and Bluetooth 4.0; check current app availability and device compatibility. Set the pixel count, chipset and colour order to match your lights. Select WS2811 for WS2812B/WS2813 and SK6812 for SK6812 RGB. Compatible SK6812 RGBW lights allow separate white-channel adjustment.
Confirm exact vehicle connections and mounting/environmental suitability before installing. Vehicle DRL, turn-signal, switchback and startup-animation functionality by configuration remain unverified. No SP668E factory-reset procedure is assumed for the SP110E.
