Riglow™ SP668E Bluetooth SPI Rear-Light Controller – 2 or 4 Outputs
SKU:RIG-SP668E-TAIL-2OUT
- Regular price
- $180.00 BBD
- Sale price
- $180.00 BBD
- Regular price
-
- Regular price
- $180.00 BBD
- Sale price
- $180.00 BBD
- Regular price
-
Hurry up! Sale ends soon
00 D :
00 H :
00 M :
00 S :
Express Shipping
Pick-Up
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Local Delivery Same-day
from $20.00 - $30.00
Local Delivery:Zone 1 — $20.00Saint Thomas, Saint George, Saint Michael, Christ Church, Saint JohnZone 2 — $30.00Saint Lucy, Saint Peter, Saint Andrew, Saint James, Saint Joseph, Saint PhilipGet your order within 1–2 business days.
Just check this out!
App and RF control for your custom rear-light build

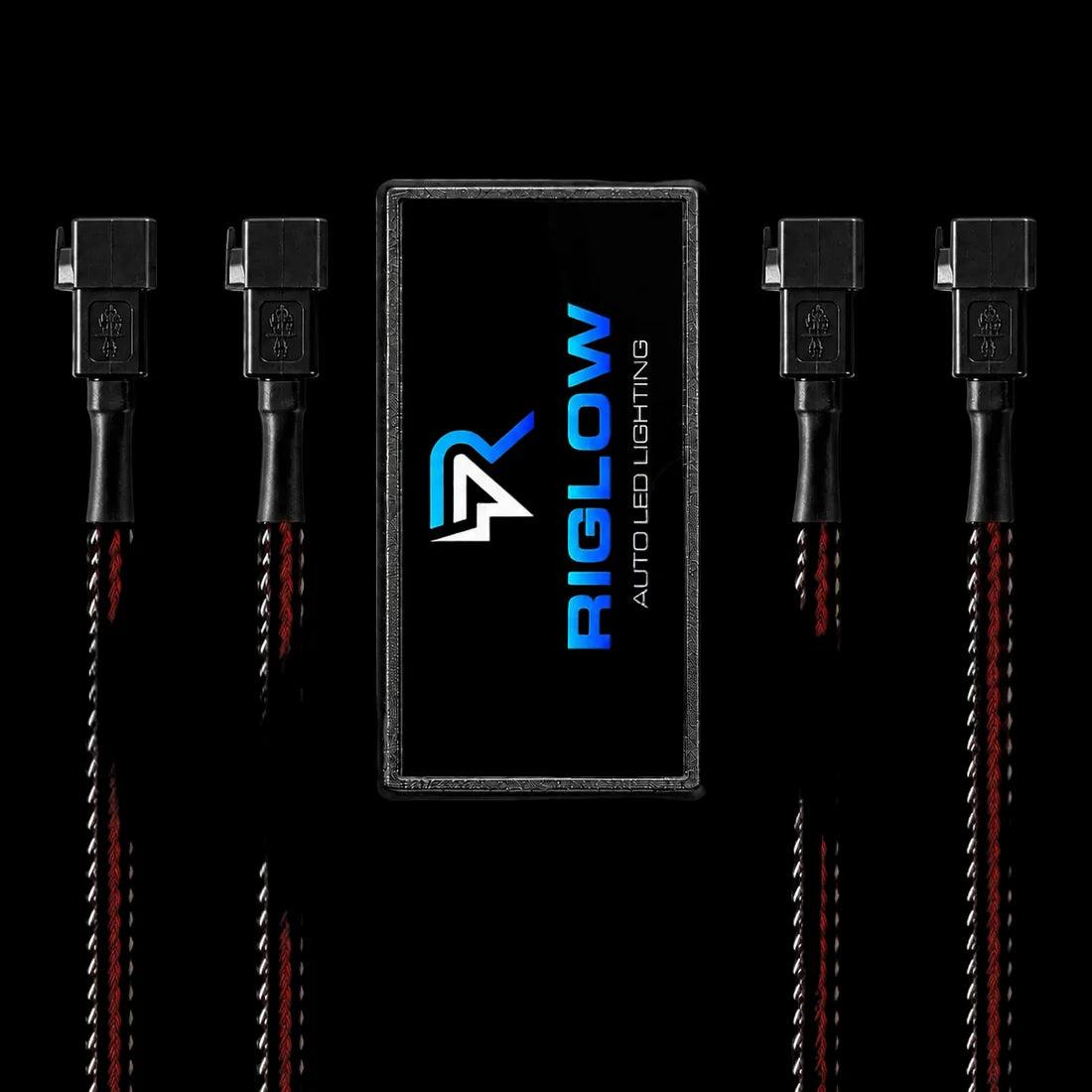

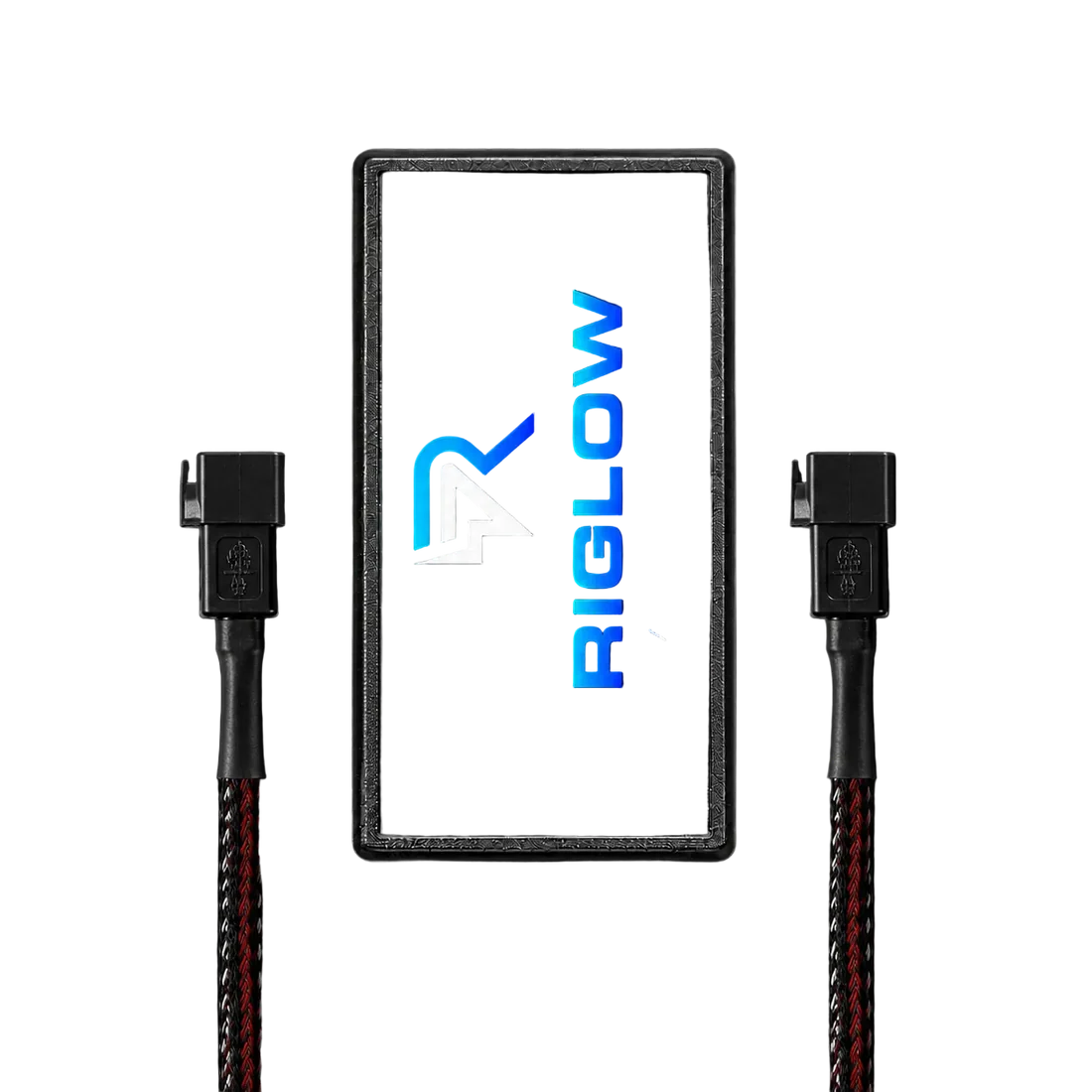

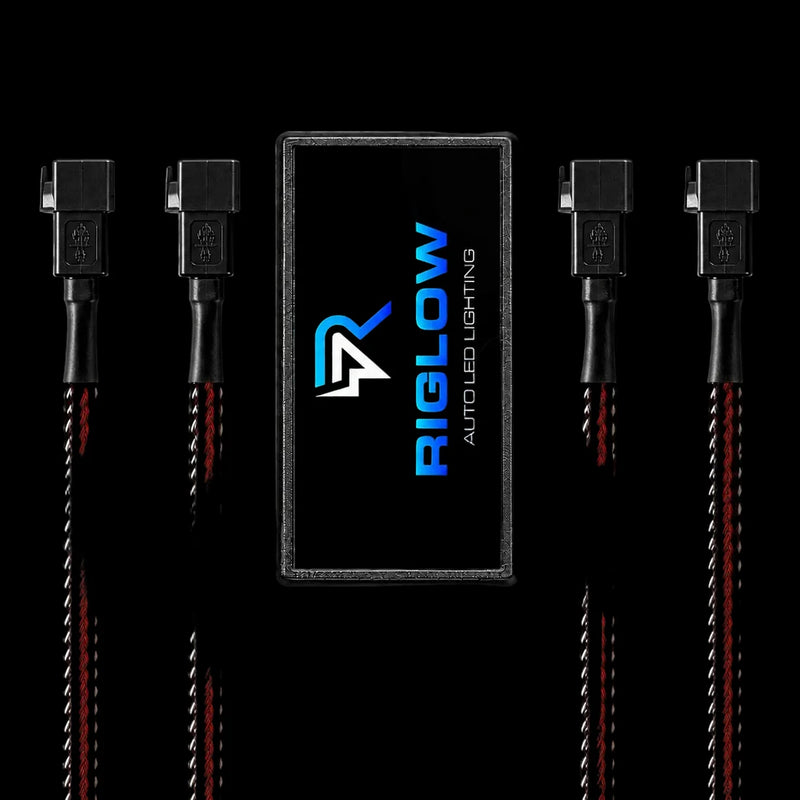

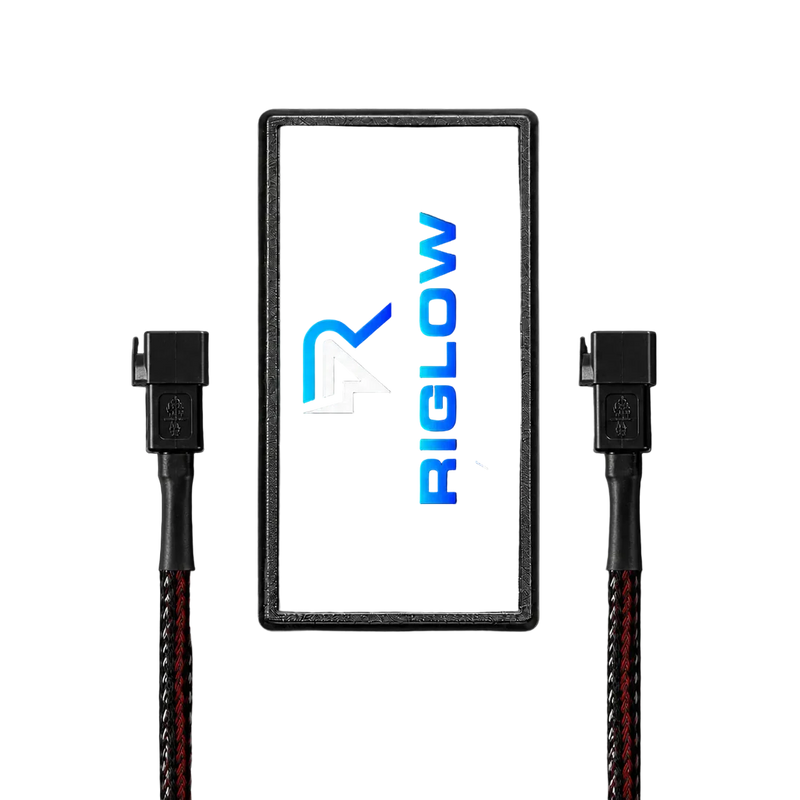

The Riglow™ SP668E Bluetooth SPI rear-light controller with driver features red startup animation for compatible custom taillight projects. Choose the 2-output or 4-output version. This is distinct from the white-DRL headlight module.
Compatible pixel lighting
Supports WS2811 and WS2812B pixel lights, based on the product information confirmed by Riglow. Match the controller, lighting protocol, connectors and pinout before installation.
Electrical requirements
The confirmed supplied specifications list a DC 5V–24V operating range, 14mA–20mA controller working current and control of up to 600 ICs. The working-current figure is not an LED load-current rating, and the 600-IC figure is not a confirmed per-output allowance. Use a supply voltage matching the connected lights; the controller input range does not mean a 5V strip can accept 24V. Total and per-output load capacity and power-distribution requirements still need exact-version confirmation.
Factory reset
The supplied reset procedure specifies five consecutive controller power cycles: energize for 2 seconds, then disconnect power, repeating five times to restore factory settings. This removes existing settings. Perform this only through the controller’s correctly rated supply connection, following supplier and vehicle procedures. Do not repeatedly disconnect the vehicle battery or handle exposed live conductors.
Installation and functions

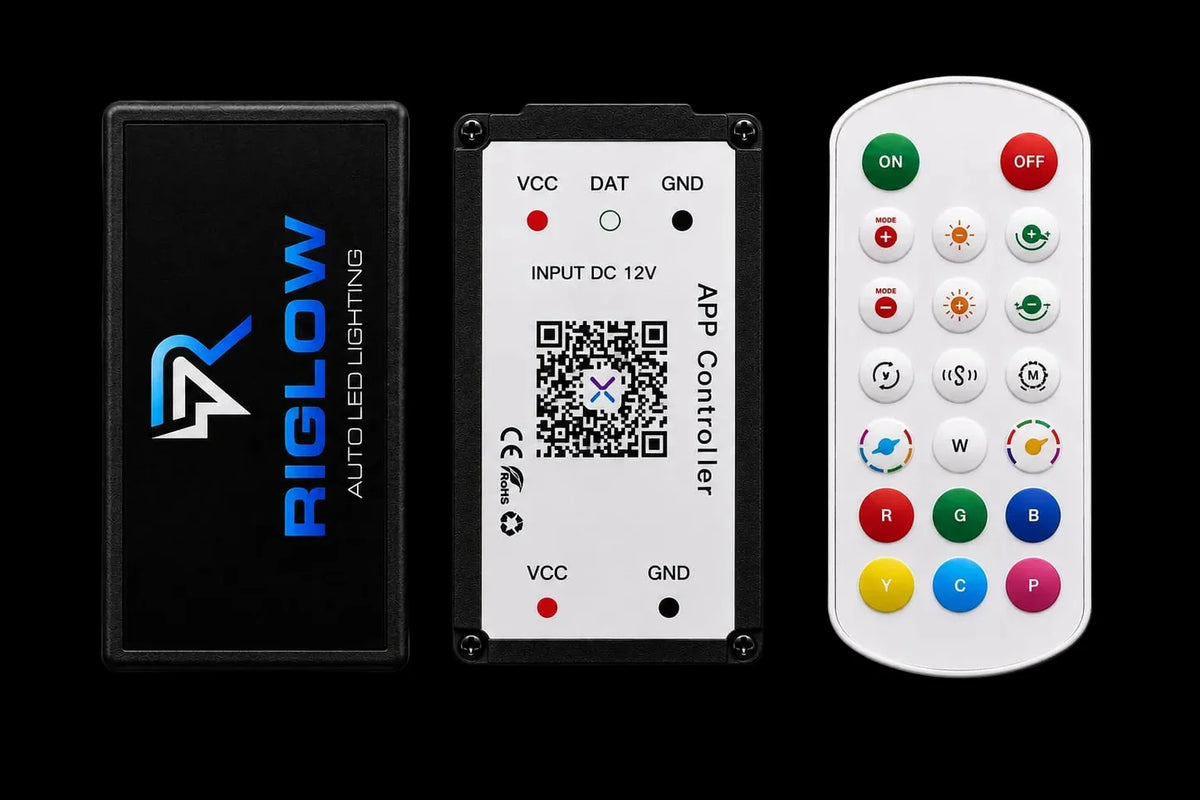

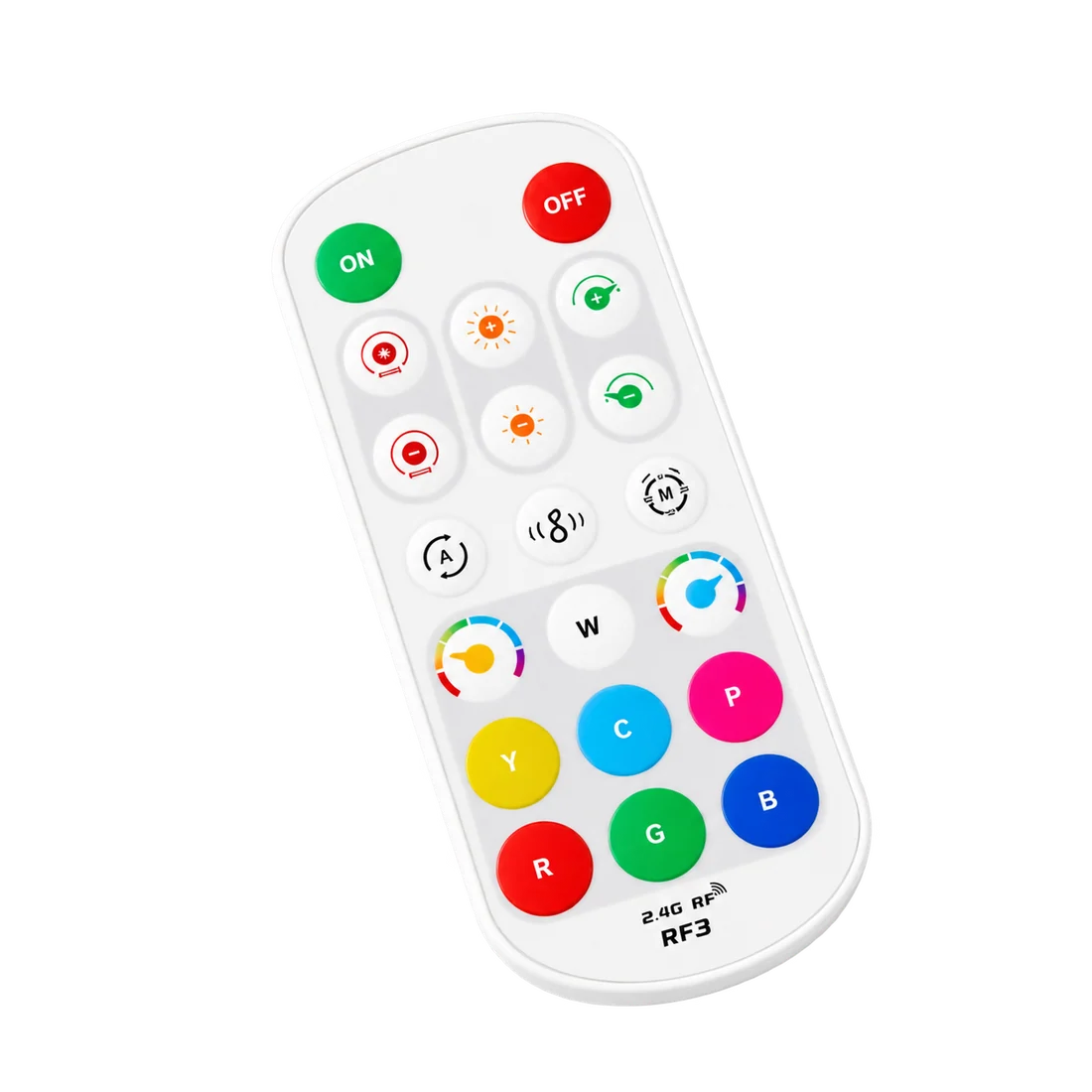

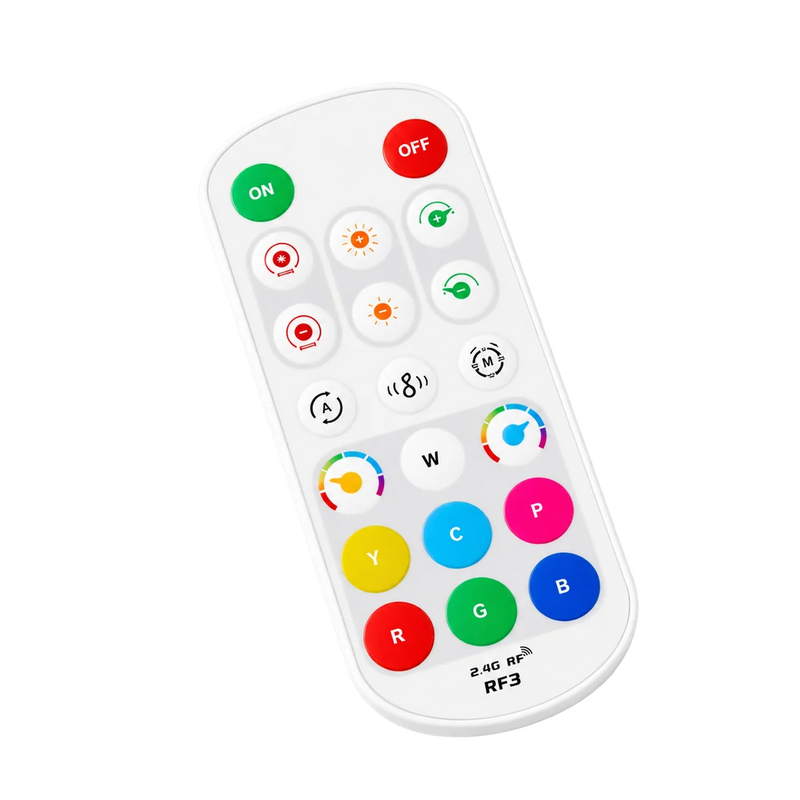

Bluetooth app and RF remote control are confirmed. Obtain the exact rear-light-version wiring diagram before connecting vehicle circuits. Brake, turn-signal, reverse and white DRL functions are not established by these specifications. Output count alone does not establish independent output control. Package accessories, remote inclusion and batteries, waterproofing and vehicle-specific fitment require confirmation.
Main Characteristics
Brand
Riglow™
Model
SP668E – rear-light version
Product Type
Bluetooth SPI taillight controller with driver
Installation
Use exact-version supplier wiring and installation instructions; verify voltage, protocol, pinout and load requirements before connecting.
Fitment
For custom rear-light/taillight applications using compatible WS2811 or WS2812B pixel lights. Verify connectors, pinout, component voltage, load and vehicle connections. No vehicle-specific direct-fit application is established.
Notes
Supplier invoice BDJ-2026100101 dated 01/Oct/26 confirms 2-output and 4-output SP668E taillight controllers with driver and red startup animation. This is distinct from the white-DRL headlight version. Merchant confirmed October 15, 2026 that the same supplied electrical, compatibility, control and reset information also applies to this rear-light controller: DC 5V–24V operating range; controller working current 14mA–20mA; control of up to 600 ICs; WS2811 and WS2812B pixel-light support; Bluetooth app and RF remote control. Working current is not an LED load-current rating. The 600-IC figure is not established per output. Match supply voltage to connected lights; the controller input range does not imply voltage conversion. Total/per-output load capacity, independent output control and power-distribution requirements remain unverified. Factory reset: five consecutive controller power cycles, each time energizing for 2 seconds then disconnecting, restores factory settings and removes existing settings. Follow exact supplier/vehicle procedures using the correctly rated controller supply connection. Do not repeatedly disconnect the vehicle battery or handle exposed live conductors. Brake, turn-signal, reverse and white DRL functionality remain unconfirmed for the rear-light version. Exact vehicle wiring, trigger sources, app identity/device requirements, remote inclusion/batteries and other package accessories require confirmation. Do not infer compatibility with other chipsets or RGBW lighting. Waterproof/IP rating, mounting/environmental suitability, material, dimensions and weight remain unverified. No vehicle-specific fitment, OEM numbers or warranty coverage inferred.
