LED Controller

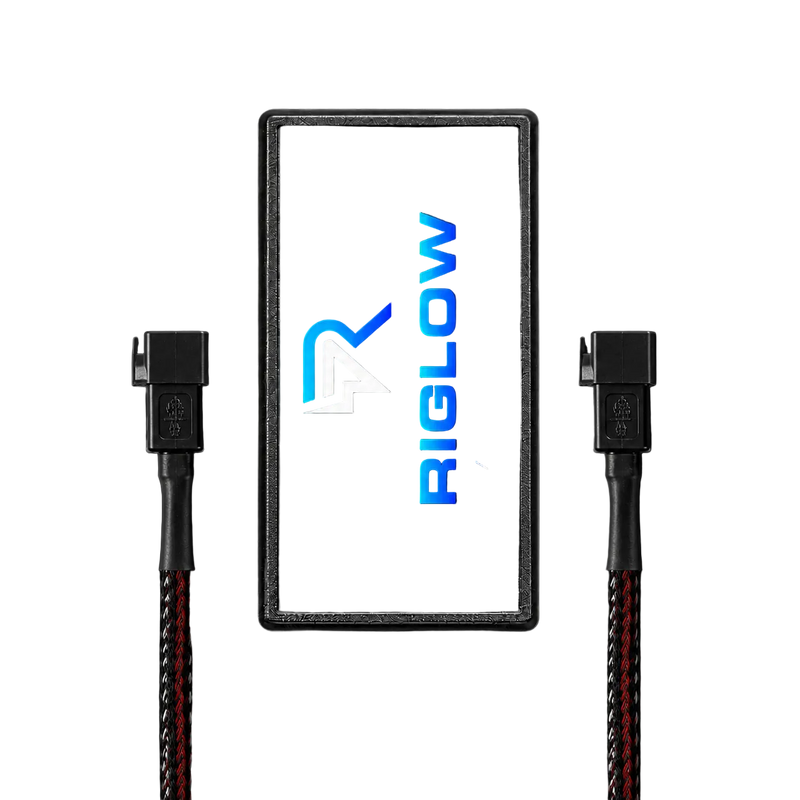

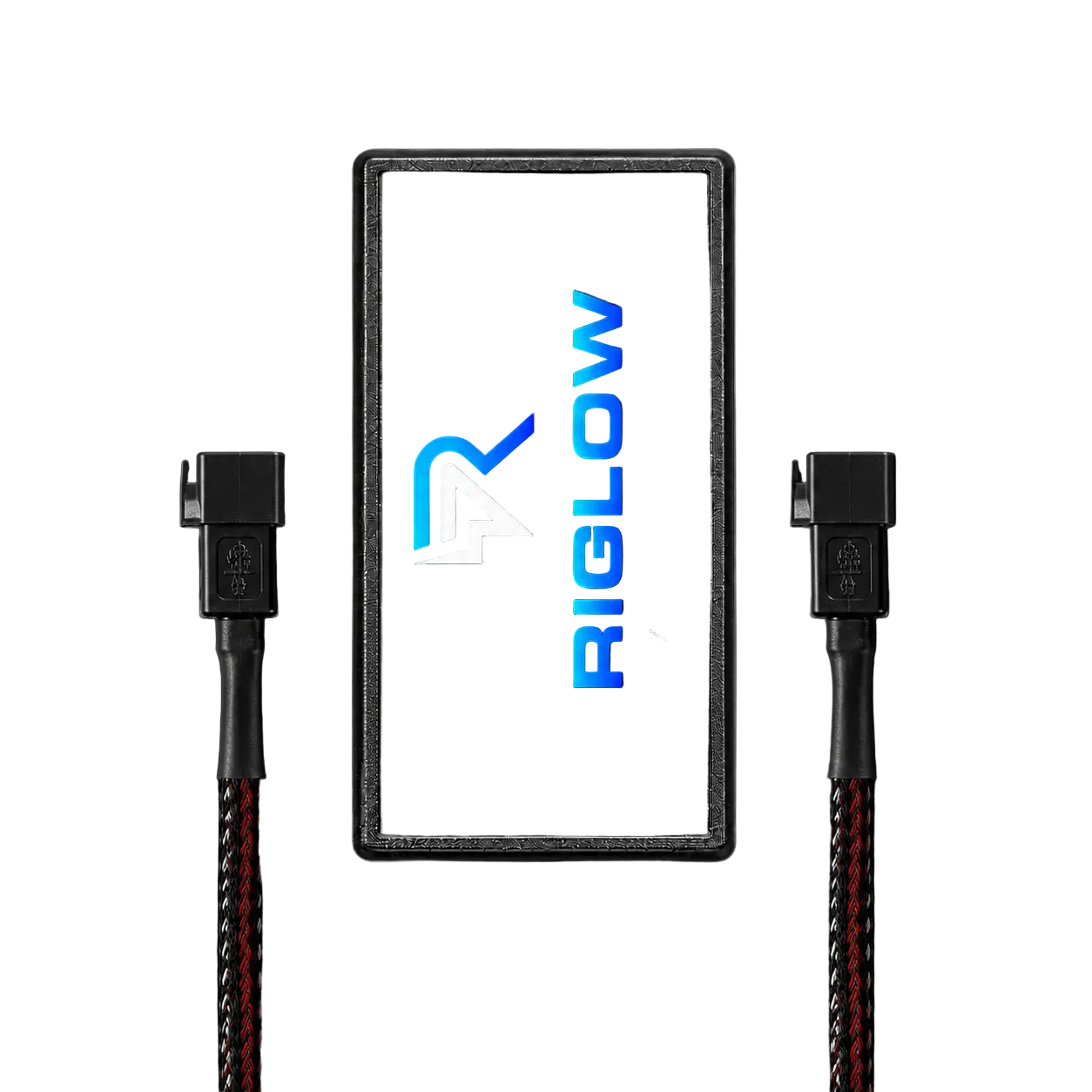

Riglow™ SP668E Bluetooth SPI Headlight Controller – 2 or 4 Outputs
- Regular price
- $180.00 BBD
- Sale price
- $180.00 BBD
- Regular price
-
Check the selected option and compatibility before ordering. Open bulb guides ↗
RIG-SP668E-4OUT
Availability applies to the selected option.
Delivery — BarbadosPay in full via 1stPay, BIMPay or bank transfer and send payment confirmation before courier release. Choose delivery at checkout.
Store pickupPickup orders may be paid when collected. Wait for confirmation that your order is ready.
BEFORE YOU ORDER
The right upgrade starts with the right fit.
Confirm the bulb socket, dimensions, connections and application relevant to this product. If unsure, send us a photo before ordering.
Listed specifications
- Brand
- Riglow™
- Model
- SP668E
- Product Type
- Bluetooth SPI headlight controller with white DRL
- Installation
- Obtain exact controller/version supplier wiring, protection, mounting and testing procedures; confirm component and vehicle compatibility before installation. Do not guess pinouts or trigger circuits.
- Fitment
- Intended for custom headlight lighting with white DRL. Merchant confirms WS2811 and WS2812B pixel-light support. Verify component voltage, connectors, pinout and vehicle connections; no vehicle-specific direct-fit or universal environmental suitability is established.
- Notes
- Merchant-confirmed October 15, 2026: the supplied SP668E strip-controller specifications and RF3 remote/reset information apply to the stocked 2-output and 4-output headlight module despite the pictured enclosure differing. Rear-light product is separate; do not transfer these specifications to it. Confirmed supplied specifications: DC 5V–24V operating range; working current 14mA–20mA; maximum control 600 ICs; Bluetooth app and RF remote control; SPI control for WS2811 and WS2812B pixel lights; white DRL feature for headlight use. Working current is not an LED load rating. The 600-IC figure is not established per output. Match supply voltage to connected lights; this is not a voltage-conversion claim. Factory reset, per supplied instructions: cycle controller power five consecutive times, each time energizing for 2 seconds then disconnecting, to restore factory settings. Use only the correctly rated controller supply connection and supplier/vehicle procedures, not repeated vehicle-battery disconnection or exposed live conductors. Listed package: one controller, one RF remote and wiring components for the selected version. Exact wiring contents and batteries remain unconfirmed. Other earlier claims retained as unverified: sequential amber signals and return mode, power memory, synchronized or independent output behaviour, compatibility with WS2813/WS2815, SK6812, UCS1903, SM16703 and GS8208, RGBW support and universal pixel-strip compatibility. App identity and device requirements, exact DRL/turn triggers and pinouts require confirmation. No total/per-output LED load capacity or power-distribution rating inferred. Waterproofing, IP rating, harsh-environment/under-hood/marine suitability, materials, dimensions, temperature limits and approvals remain unverified. Headlight use does not establish compatibility with every halo, demon eye, shroud or vehicle. Existing warranty association unchanged; consult coverage and exclusions. No OEM numbers or vehicle-specific fitment inferred.
Will it fit my vehicle?
Confirm the bulb socket, dimensions, connections and application relevant to this product. If unsure, send us a photo before ordering.
Open bulb guides ↗Installation & warranty guidance
We do not install on site. A referral to an external technician is available when needed.
View warranty terms ↗Full product details & package contents
App and RF control for your custom headlight build
The Riglow™ SP668E Bluetooth SPI headlight controller combines app and RF remote control with a white DRL feature. Choose the 2-output or 4-output version for your compatible lighting setup.
Compatible pixel lighting
Supports WS2811 and WS2812B pixel lights, based on the product information confirmed by Riglow. Match the controller, lighting protocol, connectors and pinout before installation.
Electrical requirements
The supplied specifications list a DC 5V–24V operating range, 14mA–20mA controller working current and control of up to 600 ICs. The working-current figure is not an LED load-current rating, and the 600-IC figure is not a confirmed per-output allowance. Use a supply voltage that matches the connected lights; the controller's input range does not mean a 5V strip can accept 24V. Total and per-output load capacity and power-distribution requirements still need exact-version confirmation.
Factory reset
The supplied reset procedure specifies five consecutive power cycles: energize the controller for 2 seconds, then disconnect power, repeating five times to restore factory settings. Perform this only through the controller's correctly rated supply connection, following the supplier and vehicle procedures. Do not repeatedly disconnect the vehicle battery or handle exposed live conductors.

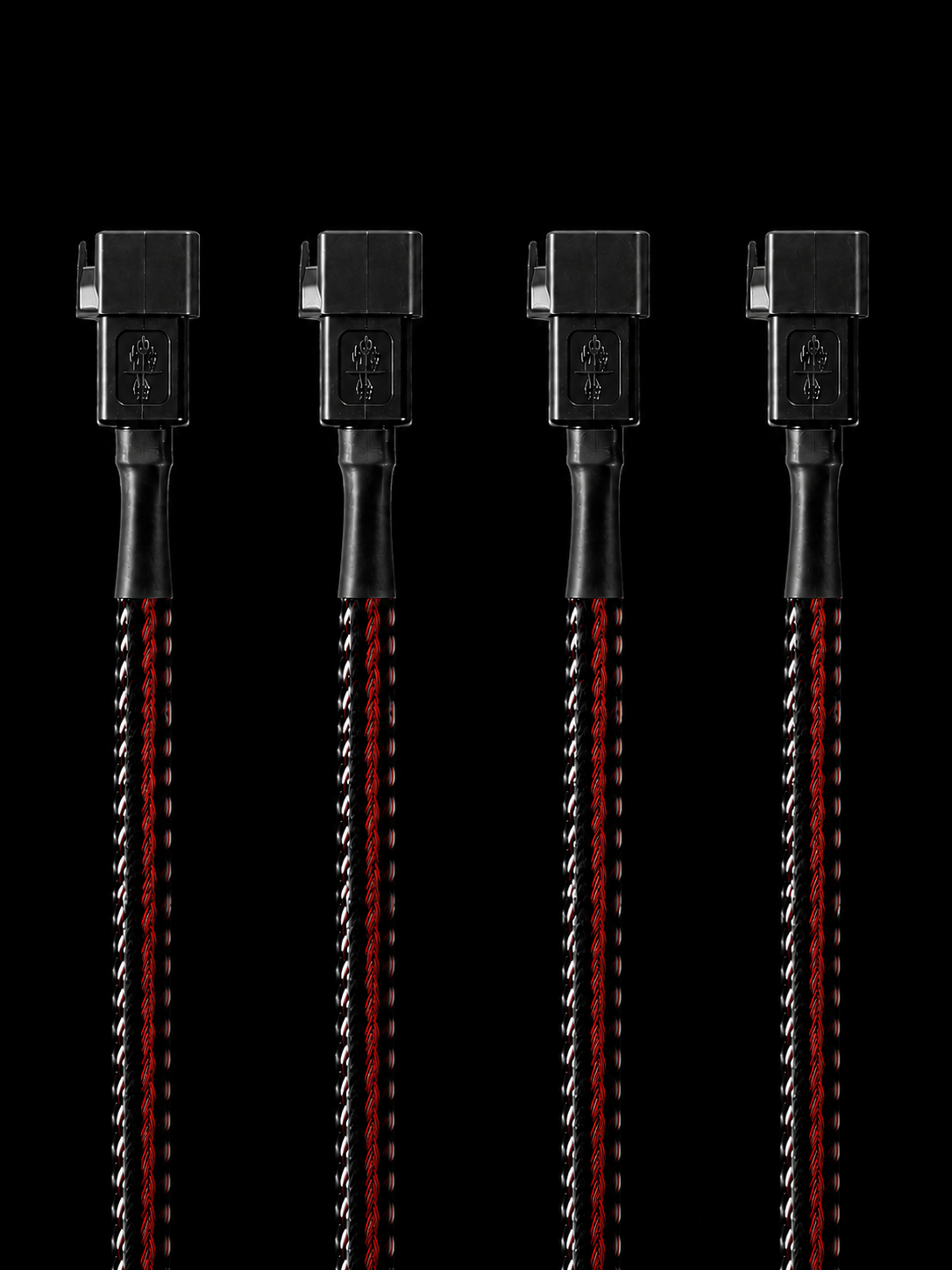

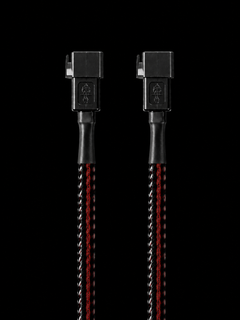

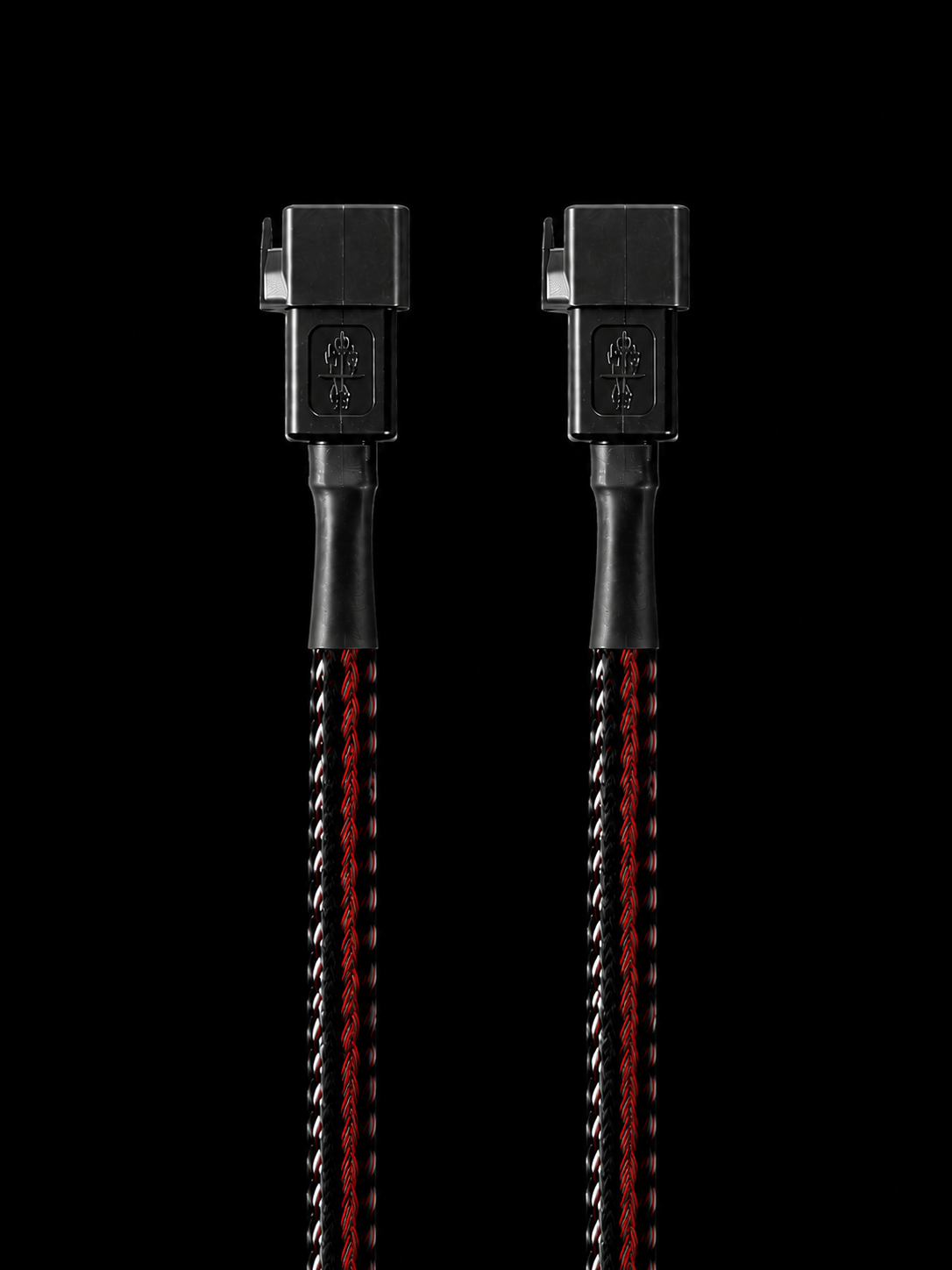

Package and installation

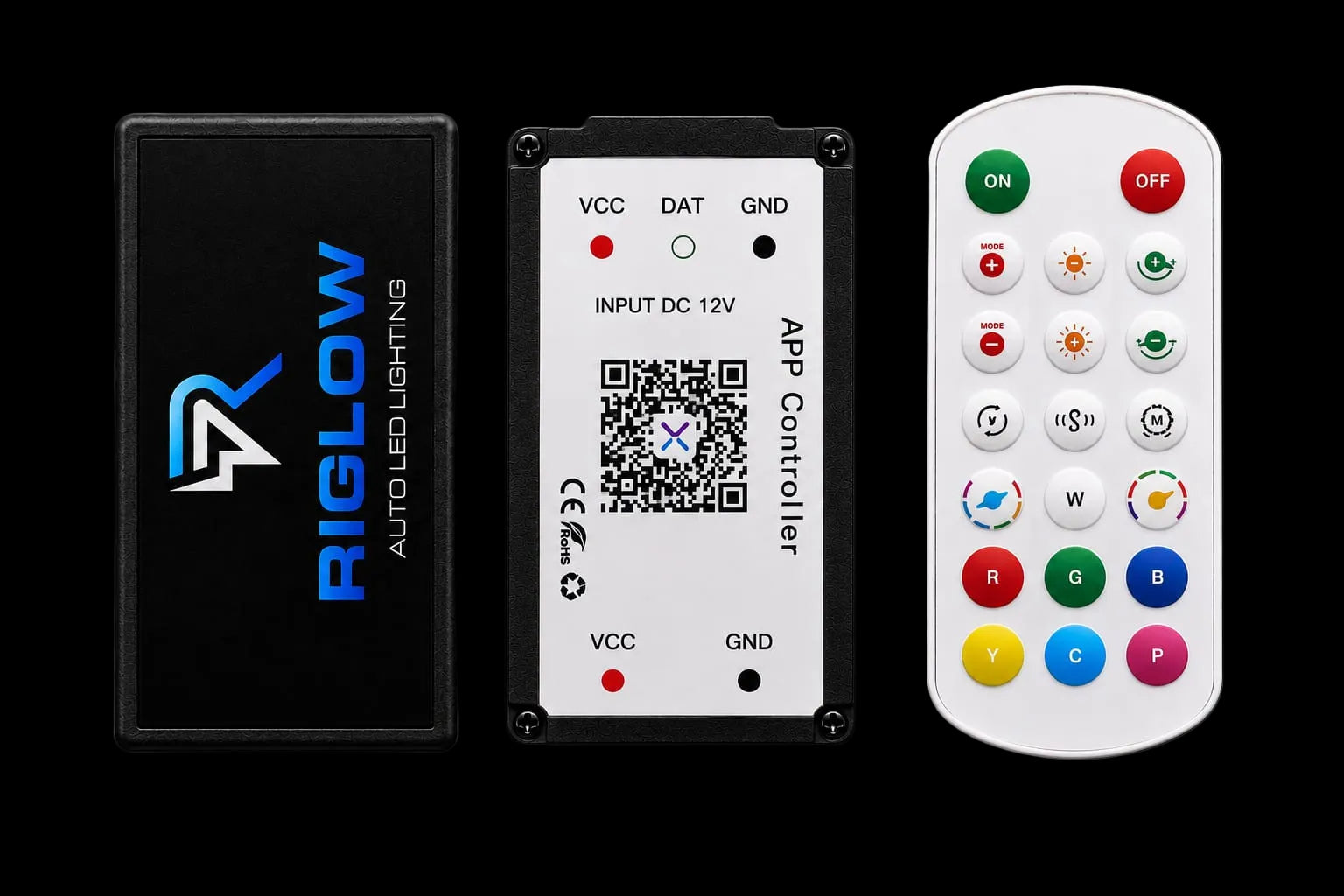

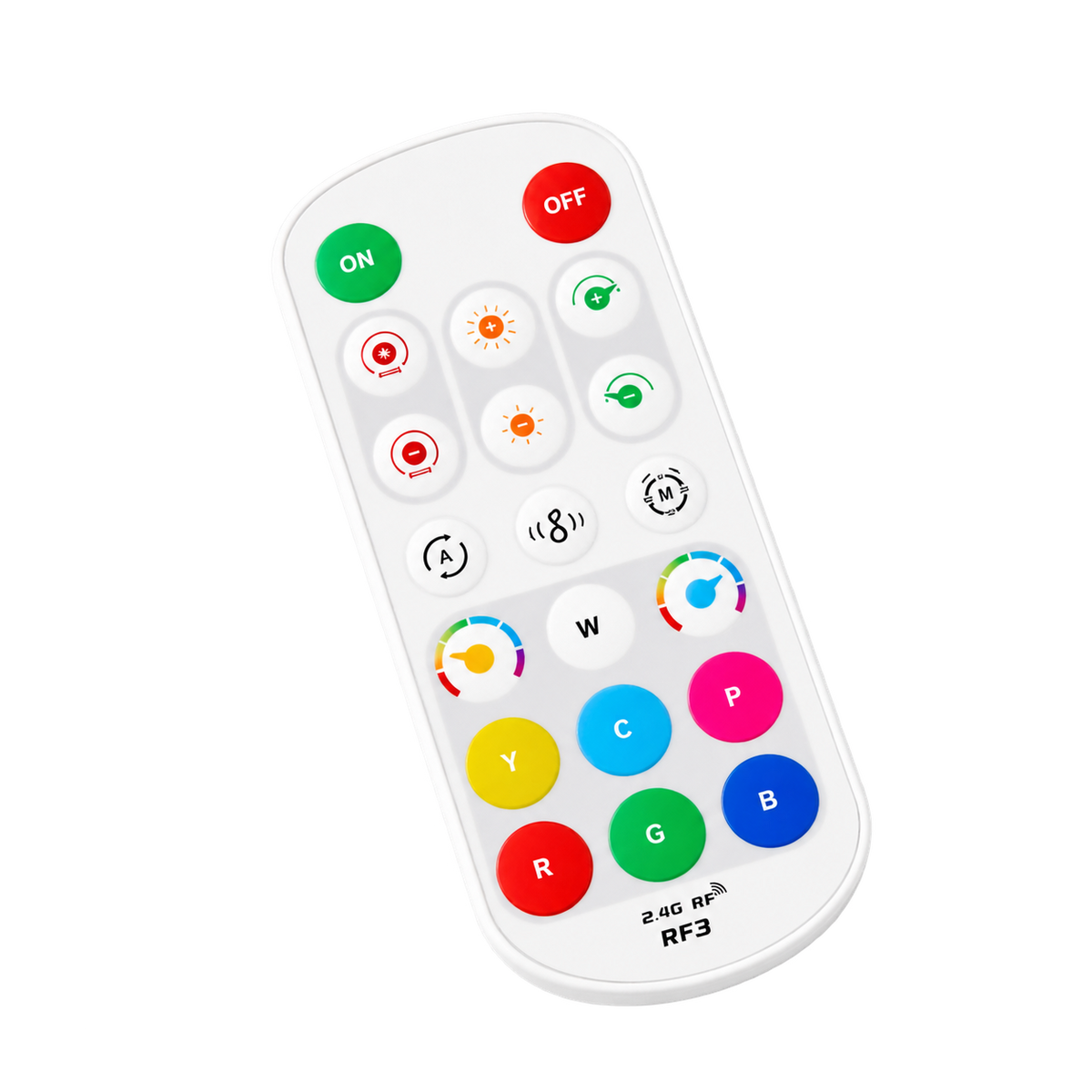

The listed package includes one controller, one RF remote and wiring components for the selected version. Exact wiring contents and remote batteries require confirmation. Obtain the exact headlight-version wiring diagram for DRL and other vehicle connections. Waterproofing, vehicle-specific fitment, sequential-signal behaviour and independent output control are not established by these specifications. Consult the existing warranty coverage and exclusions.
